Dispensing peristaltic pump  51-DPP201

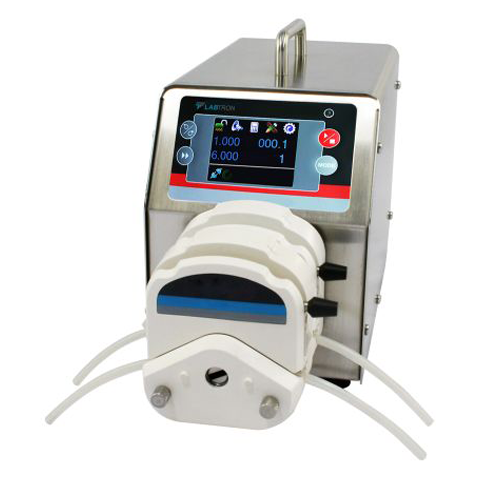

Dispensing peristaltic pump 51-DPP201

Dispensing peristaltic pump is a dual channeled pump equipped with a touch screen controller that allows monitoring of parameters and change of speed. Equipped with advanced features such as flow rate calibration and anti-drip function. Four operational modes available for easy functioning. Easy dispense mode to dispense the recorded volume by one touch DISPENSE key. Intelligent cooling fan control helps in minimizing the work noise

Flow Range 0.06 ~ 6000 mL/min
Flow Accuracy 0.005
Speed Range 0.1 ~ 600 rpm
No of channel 2
Speed Resolution 0.1 rpm
Ambient Temperature 0 ~ 40 °C
Relative Humidity < 80 %
IP grade IP 31
Power supply AC 220 V ± 10 % , 50 Hz / 60 Hz
Power Consumption < 200 W
Dimensions ( L x W x H ) 286 x 180 x 230 mm
Weight 6.2 kg
  • Operational modes : Volume Dispense, Time Dispense, Copy Dispense and Flow Mode
    LCD display for monitoring parameters
    Anti-drip function ensuring dispense accuracy
    Speed resolution : 0.1 rpm
    Adjustable rotating speed
    Intelligent temperature control minimizing working noise
    Reversible operation allowing pumping in both directions
    Multi channels with interchangeable pump heads for varied applications
    Easy liquid auto dispension by time or volume
    Internal double layer isolation
    Dust and moisture proof circuit board
    Optional remote infrared control
    Robust and protected with ABS plastic housing
    Low noise operation
