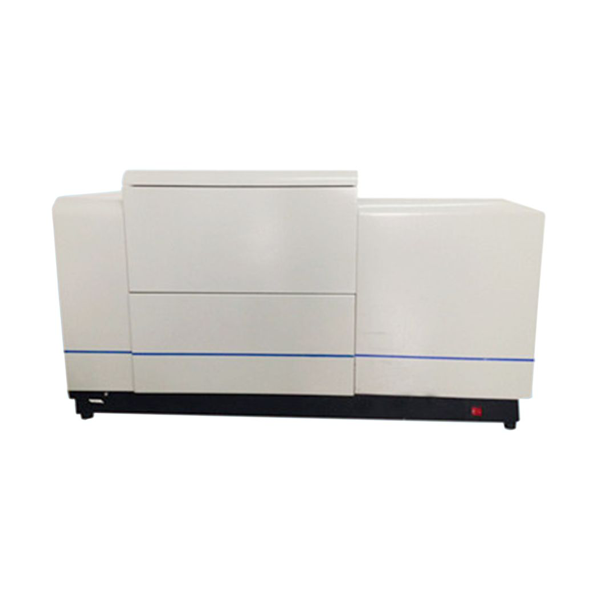

Laser Particle Size Analyzer 50-LPA300

Name: Laser Particle Size Analyzer 50-LPA300
Brand: Labsearch
SKU: 50-LPA300
Price: 29140 USD
Availability: InStock
Rating: 4.8 (771 reviews)

Laser particle size analyzer is an intelligent and automatic model integrated with wet and dry dispersion system. It uses laser diffraction measurement principle for measuring over 0.01 - 2000 μm particle size range for both wet and dry dispersion system and is the prior choice for industries and research institutions.

$29140

★ ★ ★ ★ ★

Wishlist

Confirm Your Price

Add to Cart

Measuring range	wet dispersion: 0.1 μm - 2000 μm; dry dispersion: 0.01 μm - 2000 μm
Principle	Laser light scattering
Test speed	dry dispersion: < 1 min; wet dispersion: < 2 min
Dispersion type	Wet & Dry
Executive standard	ISO 13320-1:1999
Sample type	suspension, emulsion, powders
Light source	High performance He-Ne Laser, λ= 632.8 nm
Operation mode	Full automatic
Detector channels no.	dry dispersion: 100 pcs.; wet dispersion: 127 pcs.
Optical calibration system	Automatic
Accuracy	< 1 %
Repeatability	< 1 %
Software running	Win XP/Win7
Outer dimension (L x W x H)	1230 x 640 x 660 mm
Net weight	70 kg

Converging fourier transform light path
Laser diffraction particle size measurement principle
Integrated design comprising wet and dry dispersion system
One key to switch wet & dry system
Capable of measuring suspension, emulsion and powders
Automatic optical path alignment system
Built-in dispersion system ensures uniform dispersion and distribution of particles in the testing process
Free to choose automatic or manual mode of operation
Automatic mode of operation makes it very easy to use
Unconstrained free fitting technology ensures that particle analysis is not restricted by any function

It is used for: particle size analysis in the cement industry, characterization of battery materials, investigating the dispersion of dry powders and APIs, measuring the particle size of food stuff such as coffee, sugar etc.
