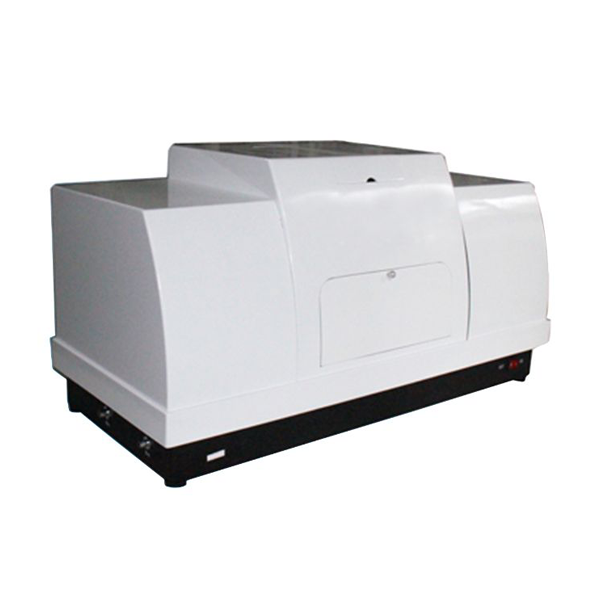

Laser Particle Size Analyzer 50-LPA100

Name: Laser Particle Size Analyzer 50-LPA100
Brand: Labsearch
SKU: 50-LPA100
Price: 12060 USD
Availability: InStock
Rating: 4.7 (561 reviews)

Laser particle size analyzer is a fully automatic cost effective and efficient particle size analyzer capable of measuring suspension, emulsion and powders. It uses laser diffraction measurement principle for measuring over the 0.1 μm to 300 μm particle size range for wet dispersion and is also well equipped with highly sensitive ring photoelectric detector which improves test accuracy.

$12060

★ ★ ★ ★ ★

Wishlist

Confirm Your Price

Add to Cart

Measuring range	0.1 μm - 300 μm
Principle	Laser light scattering
Test speed	< 2 min
Dispersion type	Wet
Executive standard	ISO13320-1:1999
Analysis	Mie & Fraunhofer technique
Sample type	Suspension, emulsion, powders
Light source	High performance He-Ne Laser,632.8 nm
Operation mode	Full automatic software control
Detector	Ring photoelectric detector
Detector channels no.	96 pcs.
Built-in ultrasonic function	Frequency: 40 kHz Power: 35 W Time: ≥ 1 s
Agitator Revolutions Speed	0-300 rpm (Adjustable)
Circulate rated flow	8 l/min
Circulate rated power	10 W
Light path alignment system	Fully automatic
Accuracy	< 1%
Repeatability	< 1 %
Sample tank volume	350 ml
Sample cuvette	10 ml (optional)
Software running	Win XP/Win7
Outer dimension (L x W x H)	880 × 390 × 460 mm
Net weight	44 kg

Comprehensive laser diffraction particle size measurement principle
Highly sensitive ring photoelectric detector which improves the test accuracy
Fully automatic software control
Capable of measuring suspensions, emulsions and powders
Automatic optical bench alignment
Built in dispersing unit consisting carefully aligned stirring set up, ultrasonic dispersing unit and the sample circulating pipes
Built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles
Optional small capacity sample chamber which helps with measuring expensive/precious samples or samples difficult to be dispersed within the medium
Analysis software uses an unique unconstrained data fitting technique developed to obtain data of unknown size distribution
Manual and automatic mode of operation makes it user friendly

It finds wide application in cement industry, ceramics, environmental and soil applications, pharmaceutical industry. It is also used for measuring the particle size of food stuff as well as paints, pigments, coating, ink, toners, fillers etc.
