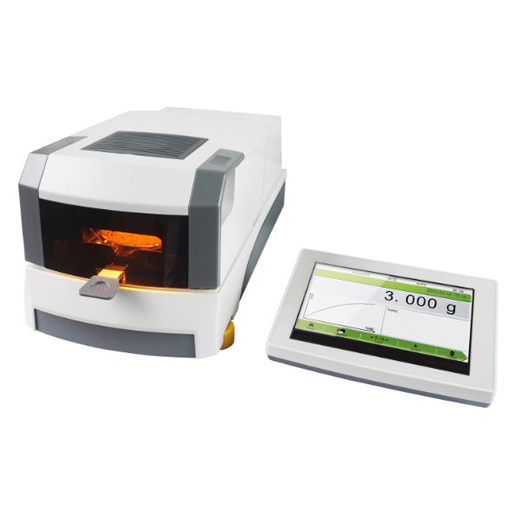

Halogen Moisture Analyzer 46-HMA107

Halogen Moisture Analyzer 46-HMA107

Halogen moisture analyzer with benchtop design, user can manually open the door of heating chamber for analysis. Incorporated with halogen heating lamp for rapid and uniform heating, it determines the moisture content and dry weight of the test sample. It continuously measures and immediately display the loss of moisture and weight on backlight LCD screen during test.

$2260
Range 210 g
Readability 1 mg
Temperature range 40 to 230 °C
Pan size 100 mm diameter
Heat source Halogen lamp
Operating temperature range 5 to 35°C
Temperature sensor PT-100
Temperature step 1°C
Temperature setting 40 to 230°C by 1°C
Time setting 1 to 99 min by 10s
Dry residual range 0 to 100 %
Dry residual readability 0.0001
Moisture range 0 to 100 %
Moisture readability 0.0001
Number of storage data 20
Number of history data 20
Communication mode Cable
Rechargeable battery No
Heater part power 220 V ± 15 % 50 Hz, 110 V ± 15 % 60 Hz, 400 W
Balance part power Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 9 V
Mechanical part machine Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 24 V (dual –drive)
Display 7 inch touch panel
Interface RS232/USB
Machine dimension 215 × 195 × 415 mm
Indicator dimension 200 × 75 × 135 mm
Operation height 275 mm
Chamber height 35 mm
Gross weight 10 kg
  • Halogen lamp heating
    Ergonomically designed pan handle
    7 inch smart touch LCD display
    Long distance operation
    Maximum 230°C heating temperature
    Stainless steel chamber
    Manual setting for time and temperature
    Easy cleaning after testing
    Connection to PC, printer
  • Used in biology, food, agriculture, pharmacy, textile, dye and research industries for determination of moisture content in the test sample.
