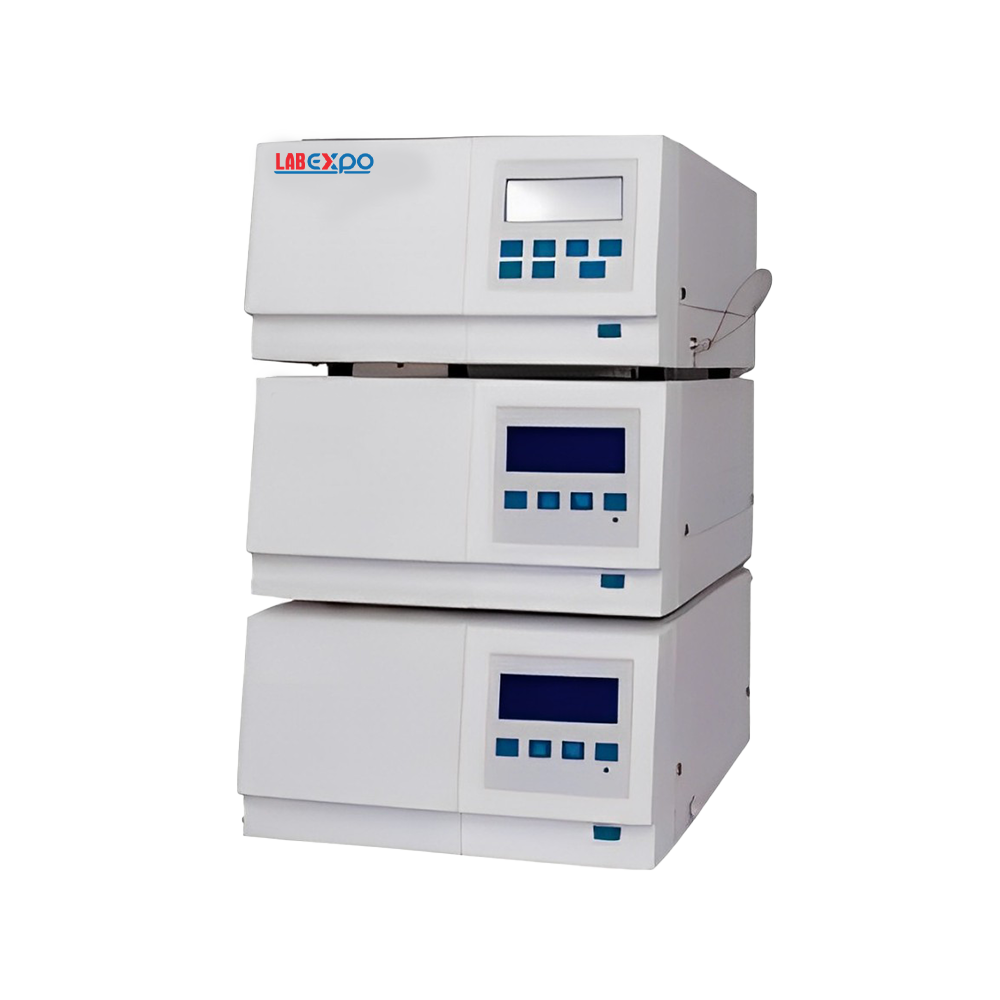

This HPLC system is equipped with high-pressure constant-current pump and UV detector. Pressure pulsation is controlled by diaphragmatic damper in seconds. The UV detectors helps in identification of samples and elutes that are colourless, odourless in nature. There is auto boot detection function available in this HPLC system.
| Model No | HPP-A1 |
| Flow rate range | 0.0001 ~ 10 ml / min |
| Maximum pressure | 50 MPa , 0 ~ 2 ml / min |
| Column size | 4.6 x 250 mm11 |
| Sample size | 5 µm |
| Pressure pulsation | ≤ 1 % at 10 MPa |
| Flow rate accuracy | ± 0.15 % at 1 ml / min |
| Flow rate repeatability % | ≤ 0.1 |
| Gradient accuracy % | ± 1.5 |
| Gradient repeatability % | ≤ 0.2 |
| Dimension | 460 x 310 x 180 mm |
| Power supply | 90 V |
| Weight | 11.6 kg |
| Model No | HPD-A20 | HPD-A21 |
| Wavelength range | Single wavelength ( 190 to 800 nm ) | Dual wavelength ( 190 to 800 nm ) |
| Wavelength accuracy | ± 0.5 nm | ± 2 nm |
| Wavelength repeatability | 0.15 nm | 0.3 nm |
| Band width | 8 nm | 8 nm |
| Optical path | 10 nm | 10 nm |
| Deuterium lamp | 190 ~ 400 nm | 190 ~ 400 nm |
| Tungsten lamp | 400 ~ 800 nm | 400 ~ 800 nm |
| Baseline noise ( Static ) Au | ≤ ± 0.35 x 10 -5 | ≤ ± 0.5 x 10 -5 |
| Baseline drift ( Static ) Au / h | ≤ 1 x 10 -4 | ≤ 1.5 x 10 -4 |
| Minimum detection limit | ≤ 4 x 10 -8 | ≤ 4 x 10 -8 |
| Power | 100 W | 100 W |
| Power supply | 90 V / 50 ~ 60 Hz | 90 V / 50 ~ 60 Hz |
| Dimension | 460 x 315 x 180 mm | 460 x 315 x 180 mm |
| Weight | 9.5 kg | 9.5 kg |
| Model No | HPP-B1 |
| Flow rate range | 0.0001 ~ 10 ml / min |
| Maximum pressure | 42 MPa , 0 ~ 5 ml / min |
| Column size | 4.6 x 250 mm11 |
| Sample size | 5 µm |
| Pressure pulsation | ≤ 1.5 % at 10 MPa |
| Flow rate accuracy | ± 0.2 % at 1 ml / min |
| Flow rate repeatability % | ≤ 0.15 |
| Gradient accuracy % | ± 2 |
| Gradient repeatability % | ≤ 0.2 |
| Dimension | 450 x 260 x 190 mm |
| Power supply | 90 V ~ 240 V |
| Weight | 11.2 kg |
| Model No | HPD-B2 |
| Wavelength range | 190 to 800 nm |
| Wavelength accuracy | ± 0.75 nm |
| Wavelength repeatability | 0.2nm |
| Band width | 8 nm |
| Optical path | 10 nm |
| Deuterium lamp | 190 ~ 400 nm |
| Tungsten lamp | 400 ~ 800 nm |
| Baseline noise ( Static ) Au | ≤ ± 0.5 x 10 -5 |
| Baseline drift ( Static ) Au / h | ≤ 1.5 x 10 -4 |
| Minimum detection limit | ≤ 4 x 10 -8 |
| Power | 100 W |
| Power supply | 90 V / 50 ~ 60 Hz |
| Dimension | 460 x 260 x 190 mm |
| Weight | 9.2 kg |
| Model No | SPH-A10 | SPH-A11 | SPH-A12 | SPH-A13 |
| Flow rate range | 0.001 ~ 50 ml / min | 0.001 ~ 50 ml / min | 0.001 ~ 100 ml / min | 0.001 ~ 100 ml / min |
| Maximum pressure | 30 MPa | 30 MPa | 15 MPa | 10 MPa |
| Flow rate accuracy | ± 0.35 | ± 0.5 | ± 0.5 | ± 0.5 |
| Flow rate repeatability % | ≤ 0.1 | ≤ 0.15 | ≤ 0.1 | ≤ 0.15 |
| Column size | 10 x 250 mm | 10 x 250 mm | 10 x 250 mm | 10 x 250 mm |
| Sample loading | 35 ~ 60 mg | 35 ~ 60 mg | 35 ~ 60 mg | 35 ~ 60 mg |
| Pressure pulsation | 1 % at 10 MPa | 1.5 % at 10 MPa | 1.5 % at 10 MPa | 1.5 % at 10 MPa |
| Flow rate repeatability % | ≤ 0.1 | ≤ 0.15 | ||
| Gradient accuracy % | ± 2 | ± 2 | ± 2 | ± 2 |
| Gradient repeatability % | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Dimension | 465 x 315 x 180 mm | 455 x 265 x 190 mm | 465 x 315 x 180 mm | 465 x 315 x 180 mm |
| Power | 150 W | 150 W | 150 W | 150 W |
| Power supply | 90 V ~ 240 V/ 50 Hz | 90 V ~ 240 V/ 60 Hz | 90 V ~ 240 V/ 50 Hz | 90 V ~ 240 V/ 60 Hz |
| Weight | 11.6 kg | 11.2 kg | 11.6 kg | 11.6 kg |
| Model No | SPH-A20 | SPH-A21 | SPH-A22 |
| Wavelength range | 190 to 800 nm | 190 to 800 nm | 190 to 800 nm |
| Wavelength accuracy | ± 0.5 nm | ± 1 nm | ± 0.75 nm |
| Wavelength repeatability | 0.15 nm | 0.3 nm | 0.2 nm |
| Band width | 8 nm | 8 nm | 8 nm |
| Optical path | Semi flow / analytical | Semi flow / analytical | Semi flow / analytical |
| Baseline noise ( Static ) Au | ≤ ± 0.35 x 10 -5 | ≤ ± 0.5 x 10 -5 | ≤ ± 0.5 x 10 -5 |
| Baseline drift ( Static ) Au / h | ≤ 1 x 10 -4 | ≤ 1.5 x 10 -4 | ≤ 1.5 x 10 -4 |
| Minimum detection limit | ≤ 4 x 10 -8 | ≤ 4 x 10 -8 | ≤ 4 x 10 -8 |
| Power | 150 W | 150 W | 150 W |
| Power supply | 90 V / 50 ~ 60 Hz | 90 V / 50 ~ 60 Hz | 90 V / 50 ~ 60 Hz |
| Dimension | 465 x 315 x 180 mm | 465 x 315 x 180 mm | 460 x 265 x 190 mm |
| Weight | 9.5 kg | 9.5 kg | 9.2 kg |
